Digital Slide Archive (DSA) is an open-source web application where users can annotate regional and point annotations on the high power slide viewer. Luna Pathology CLIs pull the different annotation types from DSA, and save the annotations in GeoJSON format along with metadata. In this notebook, we will review:

  • Project setup on DSA

  • Create annotations on DSA

  • Run regional annotation ETL

  • Run point annotation ETL

DSA provides an excellent video tutorial that covers platform features. For the first two points on DSA, the information below is an abridged version of the tutorial for your reference.

Project setup on DSA

Digital Slide Archive (DSA) is a platform that provides the ability to store, manage, visualize and annotate large imaging data sets. The DSA consists of an interface to visualize slides and manage annotations (HistomicsUI), and a web-server that provides a rich API and data management tools (using Girder). This system can:

  • Organize images from a variety of assetstores, such as local files systems and S3.

  • Provide user access controls.

  • Image annotation and review.

HistomicsUI is a web-based application for examining, annotating, and processing histology images to extract both low and high level features (e.g. cellular structure, feature types). Concepts

  • Collections correspond to a project. Collections are at the top level objects in the data organization hierarchy.

  • Folders help organize slides under a project. e.g. hne_slides

  • Items correspond to a slide. An item can have metadata, annotations and files associated with it.

  • Annotation is a single rectangle, point, or polygon

  • Annotation Document is a set of annotations, created by the pathologist.

  • Annotation Style is a predefined set of labels (morphology like tumor, stroma, necrosis etc) and colors.

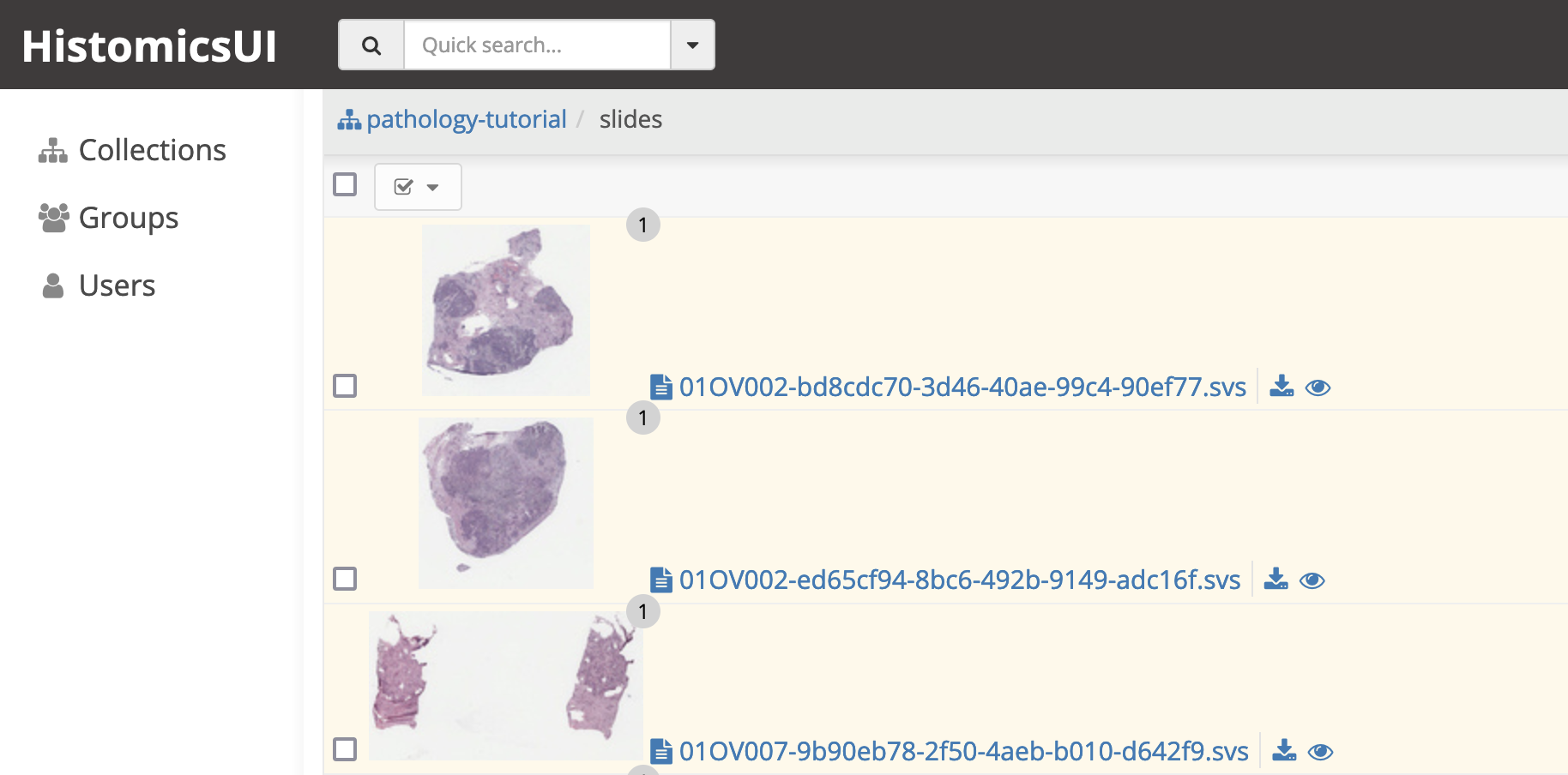

Create a collection for your project. Your images can be organized in a folder. In this example, we have a pathology-tutorial collection with slides folder where we organized the images.

DSA Collection

Create annotations on DSA

Please see this video tutorial for creating and viewing annotations. The information below is an abridged version of the tutorial for your reference.

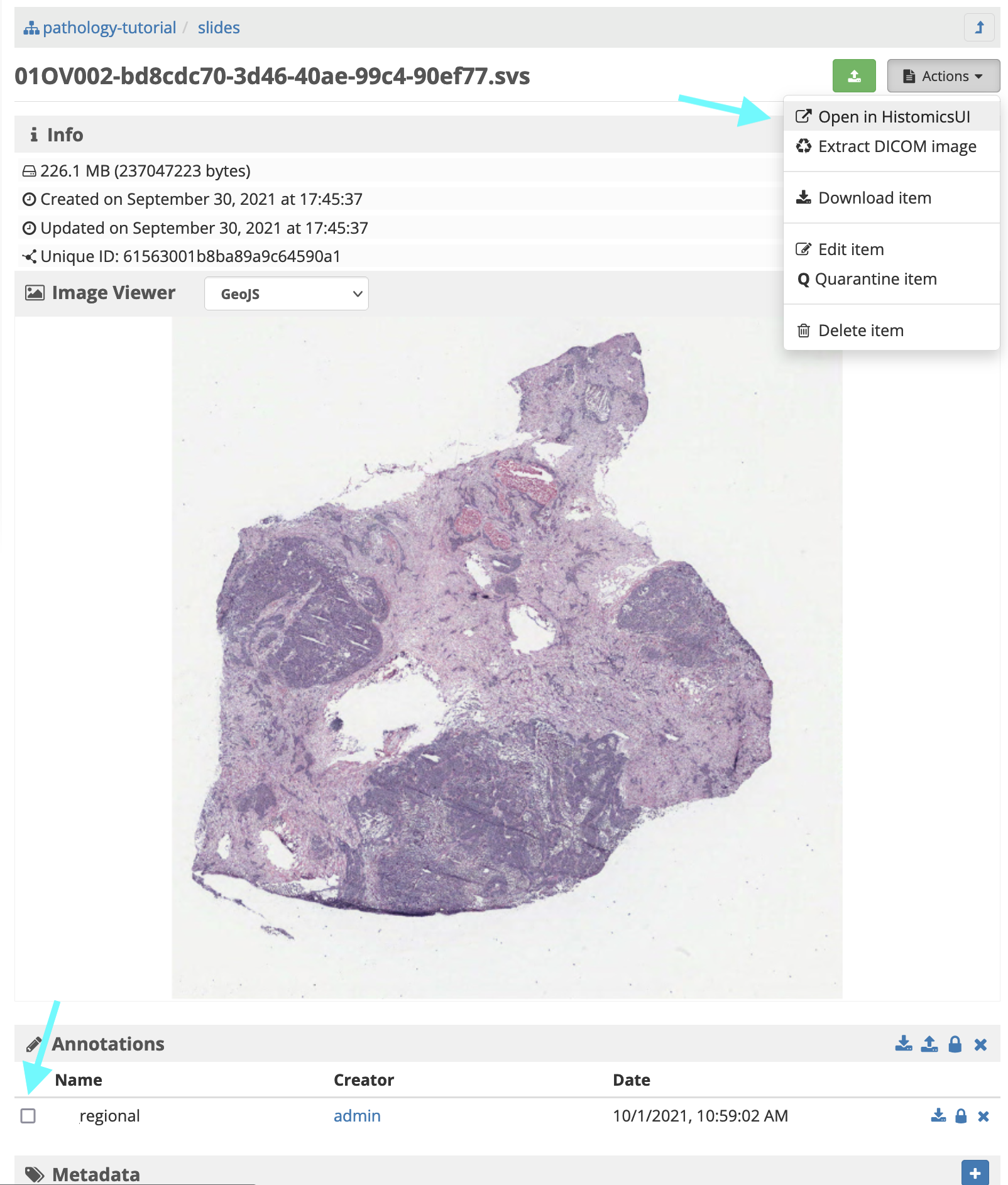

1. To navigate to HistomicsUI, go to the Actions → Open in HistomicsUI on the upper right side. HistomicsUI will open a new tab in your browser.

DSA Collection

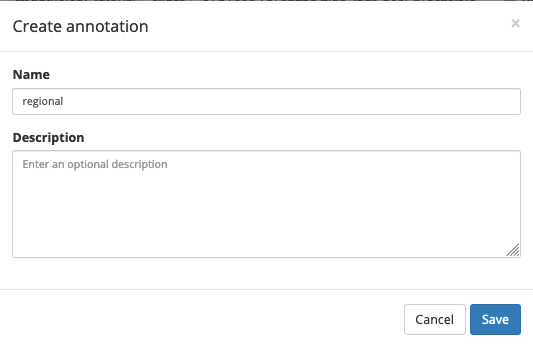

2. Create an annotation document - Click on the + New button on the Annotation panel. This will bring up a Create annotation modal. - Name you annotation document regional or point. These are the two types of annotations we support. The annotation document name will be used in the ETL, it is important to standardize your document names so the ETL can download all documents for the annotation type. - Optionally add a description, then click save.

DSA Document

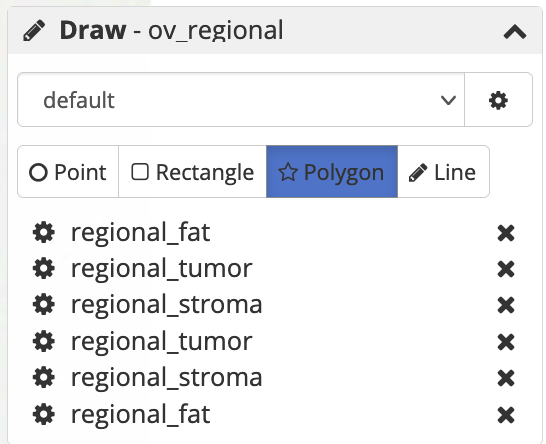

3. Create annotations

  • Select a label (e.g. regional_tumor)

  • Click on Point or Polygon. When an annotation shape is highlighted, then your cursor on the slide area will look like a +

  • For Point annotation, zoom to an appropriate magnification and click on the cell. The annotation will appear as a circle.

  • For Polygon annotation, click and drag your mouse. As you drag the area will be highlighted. Try to meet the starting point, or double click to close the polygon.

DSA Annotation

Note: Using standardized annotation styles is recommended. A uniform annotation style json can be created and shared among the pathologists making annotations.

Run regional annotation ETL

Once you have created annotations on DSA, we can run the annotation ETL CLI! This ETL will download the annotations, convert them to GeoJSON format, and create a parquet table to make the annotations and metadata queryable.

First, let’s look at the CLI arguments, by running --help

  • data_config_file contains details of the data source, project name, annotation name and path to save the annotations. To downnload regional annotations specify the DATA_TYPE as REGIONAL_METADATA_RESULTS. For point annotations, the DATA_TYPE should be POINT_GEOJSON

  • app_config_file contains dask parameters. The default parameters in the example config should be sufficient for most cases.

  • user is an optional argument for authenticating to DSA. This can be set as an environment variable DSA_USERNAME

  • password is an optional argument for authenticating to DSA. This can be set as an environment variable DSA_PASSWORD

For details of the data and app configuration, please refer to the example configurations.

Note: details of your DSA instance is specified as DSA_URI in ../conf/dsa_regional_annotation.yaml and should be updated to reflect your DSA setup. If you are using the docker, replace the localhost with the IP you get from running:

docker inspect -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}' luna_tutorial_girder_1

[11]:

!dsa_annotation --help

Usage: dsa_annotation [OPTIONS]

  This module generates parquets with regional annotation pathology data from
  DSA

  TABLE SCHEMA - project_name: name of DSA collection - slide_id: slide id.
  synonymous with image_id - user: username of the annotator for a given
  annotation. For all slides, we combine     multiple annotations as CONCAT
  user - dsa_json_path: file path to json file downloaded from DSA -
  geojson_path: file path to geojson file converted from DSA json format -
  date_updated: annotation updated time - date_created: annotation creation
  time - labelset: name of the provided labelset - annotation_name: name of
  the annotation in DSA - annotation_type: annotation type

  Args:     app_config_file (str): path to yaml file containing application
  runtime parameters.         See config.yaml.template     data_config_file
  (str): path to yaml file containing data input and output parameters.
  See dask_data_config.yaml.template     user (str, optional): DSA username.
  This can be provided as an argument or as an         environment variable
  DSA_USERNAME.     password (str, optional): DSA password. This can be
  provided as an argument or as an         environment variable DSA_PASSWORD.

  Returns:     None

Options:
  -d, --data_config_file PATH  path to yaml file containing data input and
                               output parameters. See
                               dask_data_config.yaml.template  [required]
  -a, --app_config_file PATH   path to yaml file containing application
                               runtime parameters. See config.yaml.template
                               [required]
  -u, --user TEXT              DSA username. This can be provided as an
                               argument or as an environment variable
                               DSA_USERNAME.
  -p, --password TEXT          DSA password. This can be provided as an
                               argument or as an environment variable
                               DSA_USERNAME.
  --help                       Show this message and exit.

[24]:

!dsa_annotation \
-d ../conf/dsa_regional_annotation.yaml \
-a ../conf/dsa_app_config.yaml \
-u admin -p password

2021-12-10 21:54:40,765 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:54:40,767 - INFO - luna.common.config - loading config file ../conf/dsa_regional_annotation.yaml
2021-12-10 21:54:40,772 - INFO - luna.common.config - loading config file ../conf/dsa_app_config.yaml
2021-12-10 21:54:40,774 - INFO - root - data template: ../conf/dsa_regional_annotation.yaml
2021-12-10 21:54:40,776 - INFO - root - config_file: ../conf/dsa_app_config.yaml
2021-12-10 21:54:40,821 - INFO - root - config files copied to ../PRO_12-123/configs/REGIONAL_METADATA_RESULTS
2021-12-10 21:54:40,919 - INFO - luna.pathology.cli.dsa.dsa_annotations - Table output directory: ../PRO_12-123/tables/REGIONAL_METADATA_RESULTS
Successfully connected to DSA
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
retreived collection uuid
2021-12-10 21:54:41,528 - INFO - luna.pathology.cli.dsa.dsa_annotations - Retrieved collection metadata
2021-12-10 21:54:42,955 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:54:42,956 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:54:42,960 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:54:42,963 - INFO - luna.pathology.cli.dsa.dsa_annotations - <Client: 'tcp://127.0.0.1:37037' processes=3 threads=3, memory=1.50 GB>
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 01OV002-bd8cdc70-3d46-40ae-99c4-90ef77.svs found with id: 61563001b8ba89a9c64590a1
Starting request for annotation
Image file 01OV008-308ad404-7079-4ff8-8232-12ee2e.svs found with id: 6156306db8ba89a9c64590a4
Starting request for annotation
Image file 01OV002-ed65cf94-8bc6-492b-9149-adc16f.svs found with id: 61562f90b8ba89a9c645909e
Starting request for annotation
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 2551571.svs found with id: 60f1715cf398e364deb3befb
Starting request for annotation
Image file 01OV008-7579323e-2fae-43a9-b00f-a15c28.svs found with id: 61562e72b8ba89a9c6459098
Starting request for annotation
Image file 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs found with id: 61562edeb8ba89a9c645909b
Starting request for annotation
Annotiaton not found for slide: 2551571.svs and annotation name: ov_regional
2021-12-10 21:54:43,930 - INFO - luna.common.config - loading config file /home/rosed2/vmount/conf/datastore.cfg
2021-12-10 21:54:43,936 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:54:43,940 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:54:43,948 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40ae-99c4-90ef77/admin/REGIONAL_METADATA_RESULTS_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:54:43,961 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40ae-99c4-90ef77/CONCAT/REGIONAL_METADATA_RESULTS/DEFAULT_LABELS
2021-12-10 21:54:43,968 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:54:43,972 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:54:43,981 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492b-9149-adc16f/admin/REGIONAL_METADATA_RESULTS_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:54:43,995 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492b-9149-adc16f/CONCAT/REGIONAL_METADATA_RESULTS/DEFAULT_LABELS
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 2551129.svs found with id: 60edf9d1f398e364deb34dfd
Starting request for annotation
2021-12-10 21:54:44,275 - INFO - luna.common.config - loading config file /home/rosed2/vmount/conf/datastore.cfg
2021-12-10 21:54:44,283 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:54:44,287 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:54:44,297 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV008-308ad404-7079-4ff8-8232-12ee2e/admin/REGIONAL_METADATA_RESULTS_DSA_JSON/DEFAULT_LABELS
Annotiaton not found for slide: 2551129.svs and annotation name: ov_regional
2021-12-10 21:54:44,318 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV008-308ad404-7079-4ff8-8232-12ee2e/CONCAT/REGIONAL_METADATA_RESULTS/DEFAULT_LABELS
2021-12-10 21:54:44,326 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:54:44,331 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:54:44,342 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV008-7579323e-2fae-43a9-b00f-a15c28/admin/REGIONAL_METADATA_RESULTS_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:54:44,352 - INFO - luna.common.config - loading config file /home/rosed2/vmount/conf/datastore.cfg
2021-12-10 21:54:44,360 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:54:44,361 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV008-7579323e-2fae-43a9-b00f-a15c28/CONCAT/REGIONAL_METADATA_RESULTS/DEFAULT_LABELS
2021-12-10 21:54:44,363 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:54:44,365 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:54:44,377 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4aeb-b010-d642f9/admin/REGIONAL_METADATA_RESULTS_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:54:44,377 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:54:44,388 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:54:44,401 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4aeb-b010-d642f9/CONCAT/REGIONAL_METADATA_RESULTS/DEFAULT_LABELS
2021-12-10 21:54:44,404 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:54:44,415 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:54:45,832 - INFO - root - Code block 'generate DSA annotation geojson table' took: 5.0578504719997s

Once the ETL is done, you can check the results in the following locations.

  • Configurations saved in ~/vmount/PRO_12-123/configs/REGIONAL_METADATA_RESULTS

  • Parquet table saved in ~/vmount/PRO_12-123/tables/REGIONAL_METADATA_RESULTS

  • DSA Json annotations and converted GeoJSONs saved in ~/vmount/PRO_12-123/slides/

[25]:

!ls -lh ~/vmount/PRO_12-123
!ls -lh ~/vmount/PRO_12-123/configs/REGIONAL_METADATA_RESULTS
!ls -lh ~/vmount/PRO_12-123/tables/REGIONAL_METADATA_RESULTS
!ls -lh ~/vmount/PRO_12-123/slides/01OV002-bd8cdc70-3d46-40ae-99c4-90ef77

total 0
drwxr-xr-x 3 rosed2 rosed2  96 Dec 10 21:54 configs
drwxr-xr-x 7 rosed2 rosed2 224 Dec 10 21:54 slides
drwxr-xr-x 3 rosed2 rosed2  96 Dec 10 21:54 tables
total 8.0K
-rwxr-xr-x 1 rosed2 rosed2  86 Dec 10 21:54 app_config.yaml
-rwxr-xr-x 1 rosed2 rosed2 740 Dec 10 21:54 data_config.yaml
total 12K
-rw-r--r-- 1 rosed2 rosed2 9.9K Dec 10 21:54 REGIONAL_METADATA_RESULTS.parquet
total 0
drwxr-xr-x 3 rosed2 rosed2 96 Dec 10 21:54 CONCAT
drwxr-xr-x 3 rosed2 rosed2 96 Dec 10 21:54 admin

The resulting metadata table catalogs annotation metadata - project name, annotation name, slide id, annotation creation user along with created and updated time - along with annotation type and paths to DSA json and the converted geojson.

The parquet table can be read with pyarrow as seen below:

[35]:

import pyarrow.parquet as pq

regional_annotation_table = pq.read_table('../PRO_12-123/tables/REGIONAL_METADATA_RESULTS').to_pandas()
regional_annotation_table

[35]:
project_name slide_id user dsa_json_path geojson_path date_updated date_created labelset annotation_name annotation_type
0 pathology-tutorial 01OV002-ed65cf94-8bc6-492b-9149-adc16f CONCAT ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492... ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492... 2021-12-01T20:50:24.359000+00:00 2021-10-01T14:53:56.716000+00:00 DEFAULT_LABELS ov_regional RegionalAnnotationJSON
1 pathology-tutorial 01OV008-308ad404-7079-4ff8-8232-12ee2e CONCAT ../PRO_12-123/slides/01OV008-308ad404-7079-4ff... ../PRO_12-123/slides/01OV008-308ad404-7079-4ff... 2021-12-01T20:54:49.699000+00:00 2021-10-01T14:21:41.810000+00:00 DEFAULT_LABELS ov_regional RegionalAnnotationJSON
2 pathology-tutorial 01OV002-bd8cdc70-3d46-40ae-99c4-90ef77 CONCAT ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40a... ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40a... 2021-12-01T20:47:11.551000+00:00 2021-10-01T14:59:02.979000+00:00 DEFAULT_LABELS ov_regional RegionalAnnotationJSON
3 pathology-tutorial 01OV008-7579323e-2fae-43a9-b00f-a15c28 CONCAT ../PRO_12-123/slides/01OV008-7579323e-2fae-43a... ../PRO_12-123/slides/01OV008-7579323e-2fae-43a... 2021-12-01T20:55:54.516000+00:00 2021-10-01T13:59:56.123000+00:00 DEFAULT_LABELS ov_regional RegionalAnnotationJSON
4 pathology-tutorial 01OV007-9b90eb78-2f50-4aeb-b010-d642f9 CONCAT ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4ae... ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4ae... 2021-12-01T20:52:39.769000+00:00 2021-10-01T14:44:44.514000+00:00 DEFAULT_LABELS ov_regional RegionalAnnotationJSON

Run point annotation ETL

We use the same CLI for downloading point annotations.

Your data config file should have different ANNOTATION_NAME and the DATA_TYPE will be set as POINT_GEOJSON.

[28]:

# Will be replaced with the entrypoint (dsa_annotations)
!dsa_annotation \
-d ../conf/dsa_point_annotation.yaml \
-a ../conf/dsa_app_config.yaml \
-u admin -p password

2021-12-10 21:56:37,724 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:56:37,726 - INFO - luna.common.config - loading config file ../conf/dsa_point_annotation.yaml
2021-12-10 21:56:37,730 - INFO - luna.common.config - loading config file ../conf/dsa_app_config.yaml
2021-12-10 21:56:37,732 - INFO - root - data template: ../conf/dsa_point_annotation.yaml
2021-12-10 21:56:37,734 - INFO - root - config_file: ../conf/dsa_app_config.yaml
2021-12-10 21:56:37,780 - INFO - root - config files copied to ../PRO_12-123/configs/POINT_GEOJSON
2021-12-10 21:56:37,885 - INFO - luna.pathology.cli.dsa.dsa_annotations - Table output directory: ../PRO_12-123/tables/POINT_GEOJSON
Successfully connected to DSA
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
retreived collection uuid
2021-12-10 21:56:38,567 - INFO - luna.pathology.cli.dsa.dsa_annotations - Retrieved collection metadata
2021-12-10 21:56:40,056 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:56:40,058 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:56:40,059 - INFO - root - FYI: Initalized logger, log file at: data-processing.log with handlers: [<StreamHandler <stderr> (INFO)>, <RotatingFileHandler /home/rosed2/vmount/notebooks/data-processing.log (INFO)>]
2021-12-10 21:56:40,061 - INFO - luna.pathology.cli.dsa.dsa_annotations - <Client: 'tcp://127.0.0.1:38737' processes=3 threads=3, memory=1.50 GB>
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 01OV008-308ad404-7079-4ff8-8232-12ee2e.svs found with id: 6156306db8ba89a9c64590a4
Starting request for annotation
Image file 01OV002-ed65cf94-8bc6-492b-9149-adc16f.svs found with id: 61562f90b8ba89a9c645909e
Image file 01OV002-bd8cdc70-3d46-40ae-99c4-90ef77.svs found with id: 61563001b8ba89a9c64590a1
Starting request for annotation
Starting request for annotation
Annotiaton not found for slide: 01OV008-308ad404-7079-4ff8-8232-12ee2e.svs and annotation name: point
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs found with id: 61562edeb8ba89a9c645909b
Starting request for annotation
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 01OV008-7579323e-2fae-43a9-b00f-a15c28.svs found with id: 61562e72b8ba89a9c6459098
Starting request for annotation
Image file 2551571.svs found with id: 60f1715cf398e364deb3befb
Starting request for annotation
Annotiaton not found for slide: 01OV008-7579323e-2fae-43a9-b00f-a15c28.svs and annotation name: point
Annotiaton not found for slide: 2551571.svs and annotation name: point
2021-12-10 21:56:40,933 - INFO - luna.common.config - loading config file /home/rosed2/vmount/conf/datastore.cfg
2021-12-10 21:56:40,934 - INFO - luna.common.config - loading config file /home/rosed2/vmount/conf/datastore.cfg
2021-12-10 21:56:40,940 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:56:40,942 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:56:40,944 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:56:40,944 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:56:40,949 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40ae-99c4-90ef77/admin/POINT_GEOJSON_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:56:40,950 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492b-9149-adc16f/admin/POINT_GEOJSON_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:56:40,967 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40ae-99c4-90ef77/CONCAT/POINT_GEOJSON/DEFAULT_LABELS
2021-12-10 21:56:40,967 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492b-9149-adc16f/CONCAT/POINT_GEOJSON/DEFAULT_LABELS
2021-12-10 21:56:40,973 - INFO - luna.common.DataStore - Configured datastore with {'GRAPH_STORE_ENABLED': False, 'GRAPH_URI': 'neo4j://localhost:7687', 'GRAPH_USER': 'neo4j', 'GRAPH_PASSWORD': 'password', 'OBJECT_STORE_ENABLED': False, 'MINIO_URI': 'localhost:8001', 'MINIO_USER': 'minio', 'MINIO_PASSWORD': 'password', 'DOC_STORE_ENABLED': False, 'MONGODB_URI': 'mongodb://localhost:27017/'}
2021-12-10 21:56:40,976 - INFO - luna.common.DataStore - Datstore file backend= ../PRO_12-123/slides
2021-12-10 21:56:40,979 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4aeb-b010-d642f9/admin/POINT_GEOJSON_DSA_JSON/DEFAULT_LABELS
2021-12-10 21:56:40,988 - INFO - luna.common.DataStore - Save -> ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4aeb-b010-d642f9/CONCAT/POINT_GEOJSON/DEFAULT_LABELS
collection_id_dict {'_accessLevel': 2, '_id': '60edf904f398e364deb34dfa', '_modelType': 'collection', '_textScore': 15.0, 'created': '2021-07-13T20:35:16.195000+00:00', 'description': '', 'meta': {'stylesheet': [{'fillColor': 'rgb(255, 0, 0)', 'group': 'regional_tumor', 'id': 'regional_tumor', 'label': {'value': 'regional_tumor'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'regional_stroma', 'id': 'regional_stroma', 'label': {'value': 'regional_stroma'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 0, 255)', 'group': 'regional_fat', 'id': 'regional_fat', 'label': {'value': 'regional_fat'}, 'lineColor': 'rgb(0, 0, 255)', 'lineWidth': 2}, {'fillColor': 'rgb(255, 0, 0)', 'group': 'point_lymphocytes', 'id': 'point_lymphocytes', 'label': {'value': 'point_lymphocytes'}, 'lineColor': 'rgb(255, 0, 0)', 'lineWidth': 2}, {'fillColor': 'rgb(0, 255, 0)', 'group': 'point_other', 'id': 'point_other', 'label': {'value': 'point_other'}, 'lineColor': 'rgb(0, 255, 0)', 'lineWidth': 2}]}, 'name': 'pathology-tutorial', 'public': False, 'publicFlags': [], 'size': 3161997775, 'updated': '2021-12-07T17:48:13.526000+00:00'}
Collection pathology-tutorial found with id: 60edf904f398e364deb34dfa
Image file 2551129.svs found with id: 60edf9d1f398e364deb34dfd
Starting request for annotation
Annotiaton not found for slide: 2551129.svs and annotation name: point
2021-12-10 21:56:41,199 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:56:41,205 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:56:41,211 - INFO - luna.pathology.cli.dsa.dsa_annotations - Annotation for slide 01OV007-9b90eb78-2f50-4aeb-b010-d642f9.svs generated successfully
2021-12-10 21:56:42,625 - INFO - root - Code block 'generate DSA annotation geojson table' took: 4.892569079999703s

Once the ETL is done, you can check the results in the following locations.

  • Configurations saved in ~/vmount/PRO_12-123/configs/POINT_GEOJSON

  • Parquet table saved in ~/vmount/PRO_12-123/tables/POINT_GEOJSON

  • DSA Json annotations and converted GeoJSONs saved in ~/vmount/PRO_12-123/slides/

Note that only 3 slides are annotated with point annotations, and that these annotations are made by a non-expert for demo purposes only.

[30]:

!ls -lh ~/vmount/PRO_12-123/configs/POINT_GEOJSON
!ls -lh ~/vmount/PRO_12-123/tables/POINT_GEOJSON
!ls -lh ~/vmount/PRO_12-123/slides/01OV002-bd8cdc70-3d46-40ae-99c4-90ef77/CONCAT

total 8.0K
-rwxr-xr-x 1 rosed2 rosed2  86 Dec 10 21:56 app_config.yaml
-rwxr-xr-x 1 rosed2 rosed2 724 Dec 10 21:56 data_config.yaml
total 12K
-rw-r--r-- 1 rosed2 rosed2 9.4K Dec 10 21:56 POINT_GEOJSON.parquet
total 0
drwxr-xr-x 3 rosed2 rosed2 96 Dec 10 21:56 POINT_GEOJSON
drwxr-xr-x 3 rosed2 rosed2 96 Dec 10 21:54 REGIONAL_METADATA_RESULTS

Similar to the regional annotation table, the table captures rich metadata on the point annotation along with annotation type and paths to DSA json and the converted geojson.

The parquet table can be read with pyarrow as seen below:

[34]:

import pyarrow.parquet as pq

point_annotation_table = pq.read_table('../PRO_12-123/tables/POINT_GEOJSON').to_pandas()
point_annotation_table

[34]:
project_name slide_id user dsa_json_path geojson_path date_updated date_created labelset annotation_name annotation_type
0 pathology-tutorial 01OV002-bd8cdc70-3d46-40ae-99c4-90ef77 CONCAT ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40a... ../PRO_12-123/slides/01OV002-bd8cdc70-3d46-40a... 2021-12-07T17:18:12.856000+00:00 2021-12-07T17:04:27.150000+00:00 DEFAULT_LABELS point PointAnnotationJSON
1 pathology-tutorial 01OV002-ed65cf94-8bc6-492b-9149-adc16f CONCAT ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492... ../PRO_12-123/slides/01OV002-ed65cf94-8bc6-492... 2021-12-07T17:46:28.147000+00:00 2021-12-07T16:56:07.014000+00:00 DEFAULT_LABELS point PointAnnotationJSON
2 pathology-tutorial 01OV007-9b90eb78-2f50-4aeb-b010-d642f9 CONCAT ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4ae... ../PRO_12-123/slides/01OV007-9b90eb78-2f50-4ae... 2021-12-07T17:22:18.185000+00:00 2021-12-07T17:18:49.703000+00:00 DEFAULT_LABELS point PointAnnotationJSON
[ ]:

previous

Digital Slide Archive (DSA) Visualization Tutorial

next

API Reference
